Home›Manufacturing Partners›Yuhong›SAM-920 — Self-adhesive polymer-modified bitumen waterproof membrane without reinforcement
Self-adhesive polymer membrane

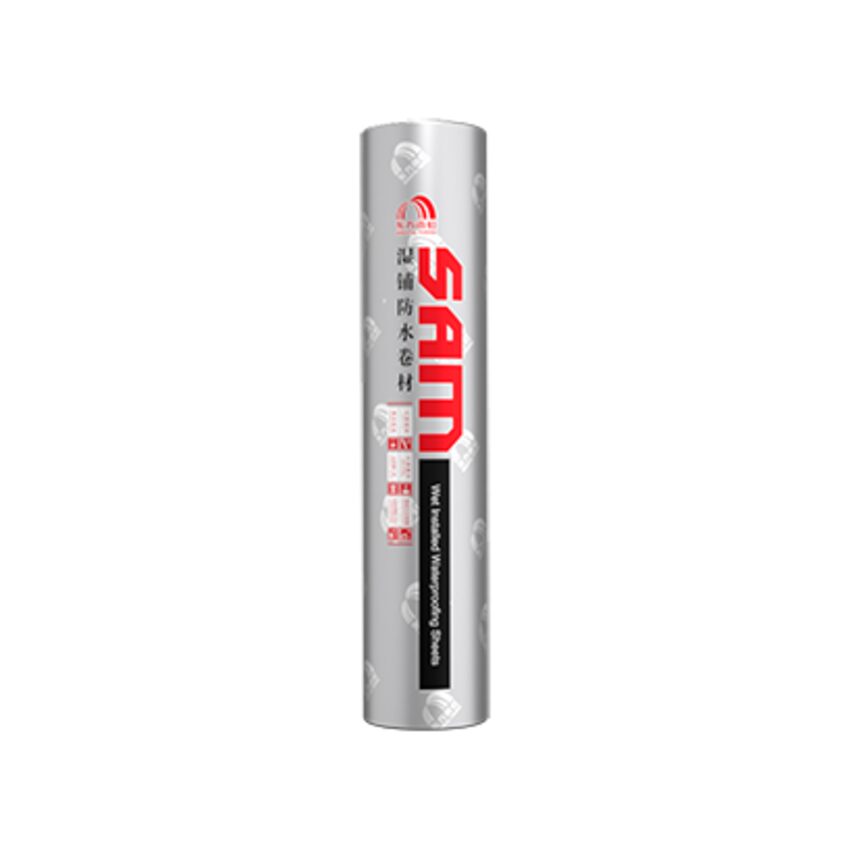

SAM-920 — Self-adhesive polymer-modified bitumen waterproof membrane without reinforcement
SKU:
✓ In Stock at Foshan Warehouse📦 DDP to Vietnam in 7–10 daysSAM-920SAM-920 self-adhesive polymer-modified bitumen waterproof membrane without reinforcement, is a self-adhesive membrane using unreinforced polymer-modified bitumen as base material.
🏭Manufacturer
Yuhong
🧱Industry
Building Materials
🛡️Warranty25 years
✅Factory Audit2×/year on-site
🌍Export60+ countries
Product Line Story
Self-adhesive polymer membrane
Yuhong Self-Adhesive Membrane (TKB 2xx/3xx/4xx, SAM) — peel-and-stick cold application without torch, safe installation, cold/wet lay for basements, toilets, roofs.
Technical Heritage
Self-adhesive technology enables fast, safe installation, suitable for confined spaces.
Detailed Description
Detailed description coming soon.
🏠Applications
High bond strength: tackifier resin enhances adhesion, ensuring firm bonding to substrate. Strong initial tack, adheres firmly above 5℃ without heating equipment, offering safety, eco-friendliness, and convenienceSelf-healing: excellent self-healing ability for small cracks caused by external stressLong-lasting adhesion: adheres to substrate without peeling, no water migration, self-adhesive overlap joints have lifespan equal to the membraneWide temperature range: no flow at high temperature (70°C), no cracking at low temperature (-20°C), broad service temperature range
Why Choose This Product Line?
🏆
China's #1 waterproofing brand
Leading brand, used in major national infrastructure projects.
🧊
Safe cold application
No torch needed, safe for enclosed spaces.
⏱️
Fast installation
Peel and stick, saves time.
Technical Specifications· Source: Yuhong ↗
| Thickness | 1.2mm, 1.5mm, 2.0mm |
| Width | 1.0m |
| Length | 15m, 20m |
| Area/Roll | 15 m²/roll, 20 m²/roll |
| Material | unreinforced polymer modified bitumen |
| Standard | GB 23441-2009 'Polymer modified bitumen self-adhesive waterproofing membrane' |
| Application Scope | suitable for non-exposed roof waterproofing or underground projects (including cut-and-cover subway), as well as waterproofing of water tanks, canals, etc., especially for projects where open flames are prohibited |
🏭Production Process
- ▸Beijing Oriental Yuhong (SZSE 002271) — China's largest waterproof manufacturer, established 1995
- ▸Dozens of manufacturing bases across China; national-level R&D & testing centers
- ▸Automated production lines for bitumen/polymer membranes & coatings; batch quality control
- ▸Supply to major infrastructure projects: high-speed rail, airports, subways, reservoirs
🏆Quality Certifications
- ✓China National Standard (GB) for waterproof membranes & coatings
- ✓ISO 9001 / ISO 14001 / ISO 45001
- ✓Green product certification, low VOC content
- ✓China National Famous Brand
🔧Installation Guide
- 1.Clean, dry, flat surface, free of oil and dust before application
- 2.Torch-on/self-adhesive membrane: torch or peel-and-stick per instructions; adequate overlap
- 3.Coating: apply multiple coats as per specification, allow sufficient drying between coats
- 4.Conduct water ponding test before applying protective layer / tiling
🧽Care & Cleaning
Storage
Store in a dry place, away from heat & open flames (bitumen membrane). Keep paint sealed to prevent skinning.
Application
Follow recommended application rates & temperatures; do not apply in rain/high humidity.
Acceptance inspection
Check overlaps, corner detailing, pipe penetrations; water test before covering.
📦Packaging & Shipping
| Roll membrane | Roll width 1m, length 10–20m/roll; membrane wrapped on pallet |
| Paint/coating | 20kg pail (or as per manufacturer's specification) |
| MOQ | By container; mixing multiple codes OK |
| Storage | Cool dry place, avoid sunlight; membranes upright, coatings sealed |
Reference Projects Using This Product Line
🏛️Bird's Nest Stadium
🏛️High-speed rail & subway
🏛️Airports, reservoirs, metro tunnels
Frequently Asked Questions
▸Do Yuhong materials have GB standards for import?
Yes. Provide applicable standards (GB) + test reports; Huayuesc supports import documentation.
▸Consultation on selecting waterproofing system by project type?
Yes. Send project type (roof, basement, toilet, water tank...) for suitable membrane/coating recommendation.
▸MOQ & delivery time?
Pricing per container; delivery schedule communicated per order.
